HDMI eARC ARC Audio Extractor;KSRplayer 192Khz eARC to RCA Audio Converter Digital to Analog Adapter, R/L Optical, 3.5mm Audio TV Adapter for DTS Dolby Atoms AC3 LPCM Fiber AY128

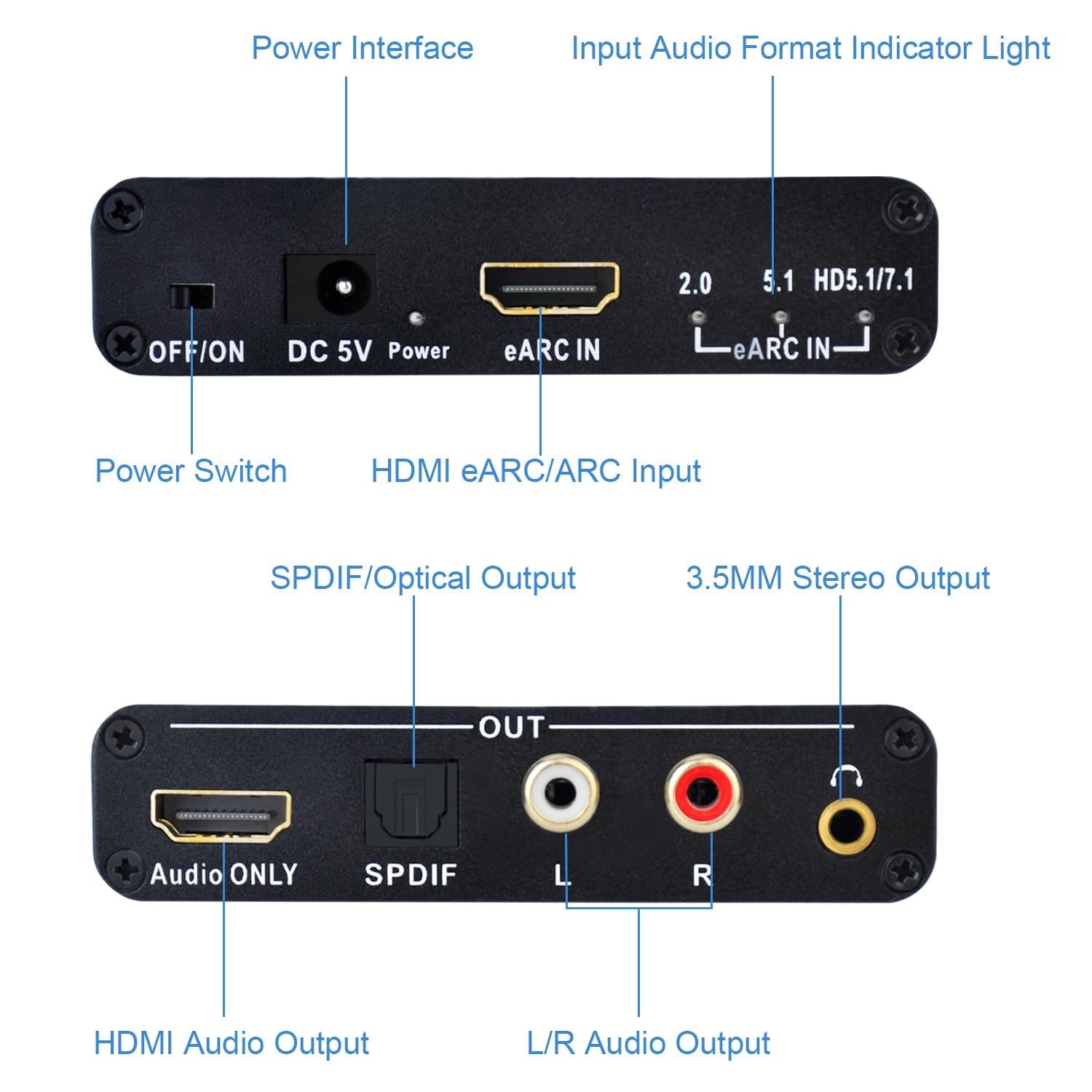

    • Support eARC, ARC input. eARC input connector, (when used with the TV's HDMI/eARC connector connection)

    • RCA and 3.5mm headphone output volume level can be controlled via the
      TV remote control (CEC); supports input audio channel number indicator.

    • HDMI output interface, when used with the amplifier's HDMI interface
      connection up to 7.1 channel transmission, the interface only audio
      output, no image. Optical digital audio output interface, when used with
      the amplifier's optical interface connection can transmit up to 5.1
      channels.

    • 3.5mm stereo audio output connector, no audio output on this
      connector when the 5.1 indicator or HD5.1/HD7.1 indicator is lit, please
      set the TV to PCM output when using this connector.


Introduction

Introduction:

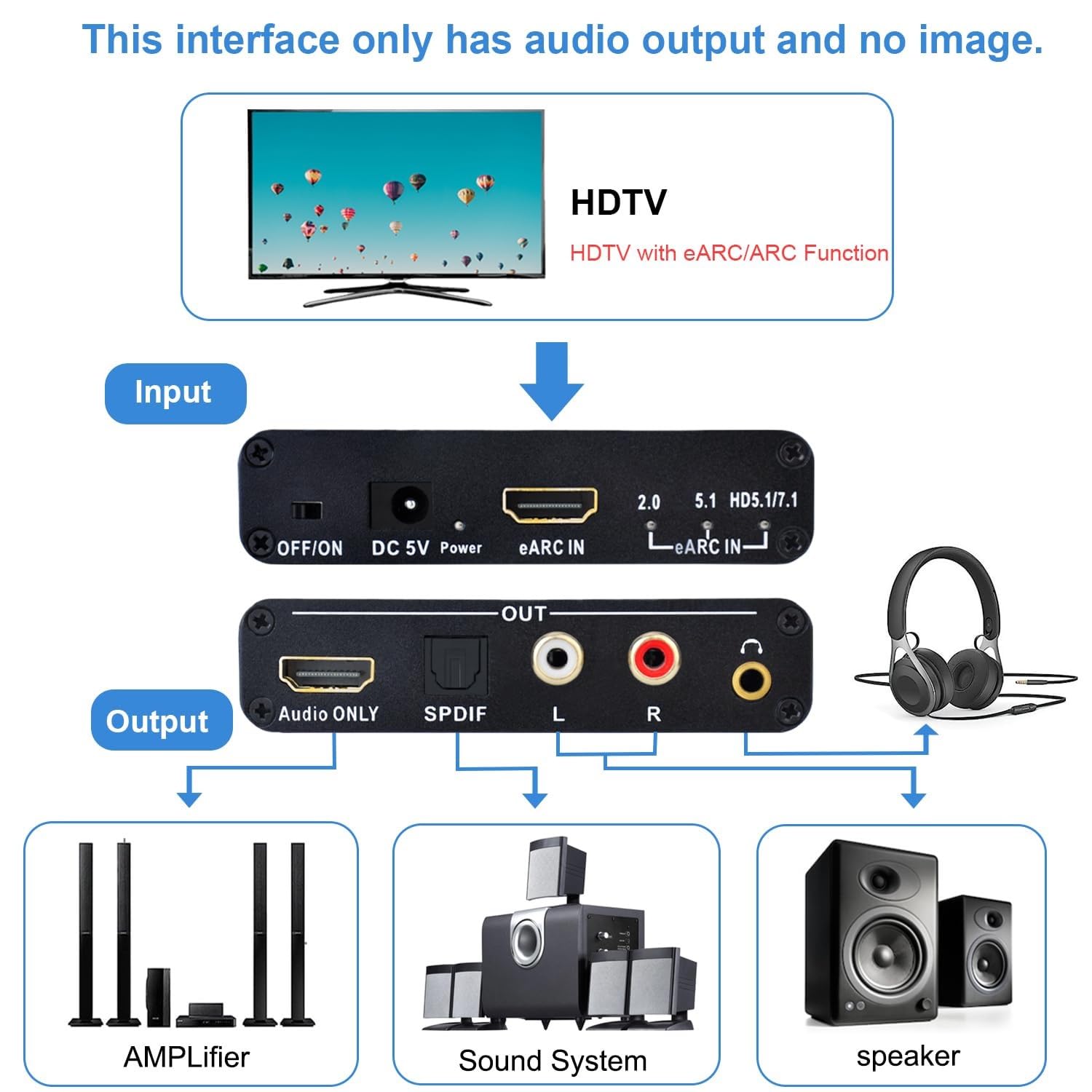

This product is designed to upgrade amplifiers or soundbars that do not support eARC function to be able to connect with TVs that support eARC function, so that they can obtain high-definition audio through the TV's eARC channel. It can also connect the audio signal of a TV that supports eARC to an amplifier or headphones through the fiber optic and analog stereo interfaces of this eARC audio converter. This eARC audio converter is also compatible with TVs that have ARC function.

Features:

-Supports eARC and ARC inputs
-HDMI, fiber optic, RCA, and 3.5mm headphone outputs (HDMI only transmits audio signals and no images)
-HDMI output supports up to HD 5.1 and HD 7.1 channels
-Fiber optic interface supports up to 5.1 channels
-Supports transmission of 24bit/192KHz audio sampling rate
-RCA and 3.5mm headphone output volume can be controlled by TV remote control (CEC)
-Supports input audio channel indicator lights

Specifications:

-Input interface: eARC/ARC
-HDMI output version: HDMI 1.4
-HDMI output resolution: 720P (HDMI only transmits audio signals and no images)
-Output interface: HDMI1, fiber optic1, RCA2, 3.5mm1
-Supported audio formats: PCM, AC3, DTS, DD+, DTS-HD Master audio, DOLBY True HD
-Power interface: DC5.5
-Power voltage and power consumption: DC5V/300mA
-Enclosure material: Aluminum alloy
-Color: Black
-Operating temperature: -10~+55℃
-Storage temperature: -20~+60℃
-Operating humidity: 1090%RH (non-condensing)
-Storage humidity: 595%RH (non-condensing)

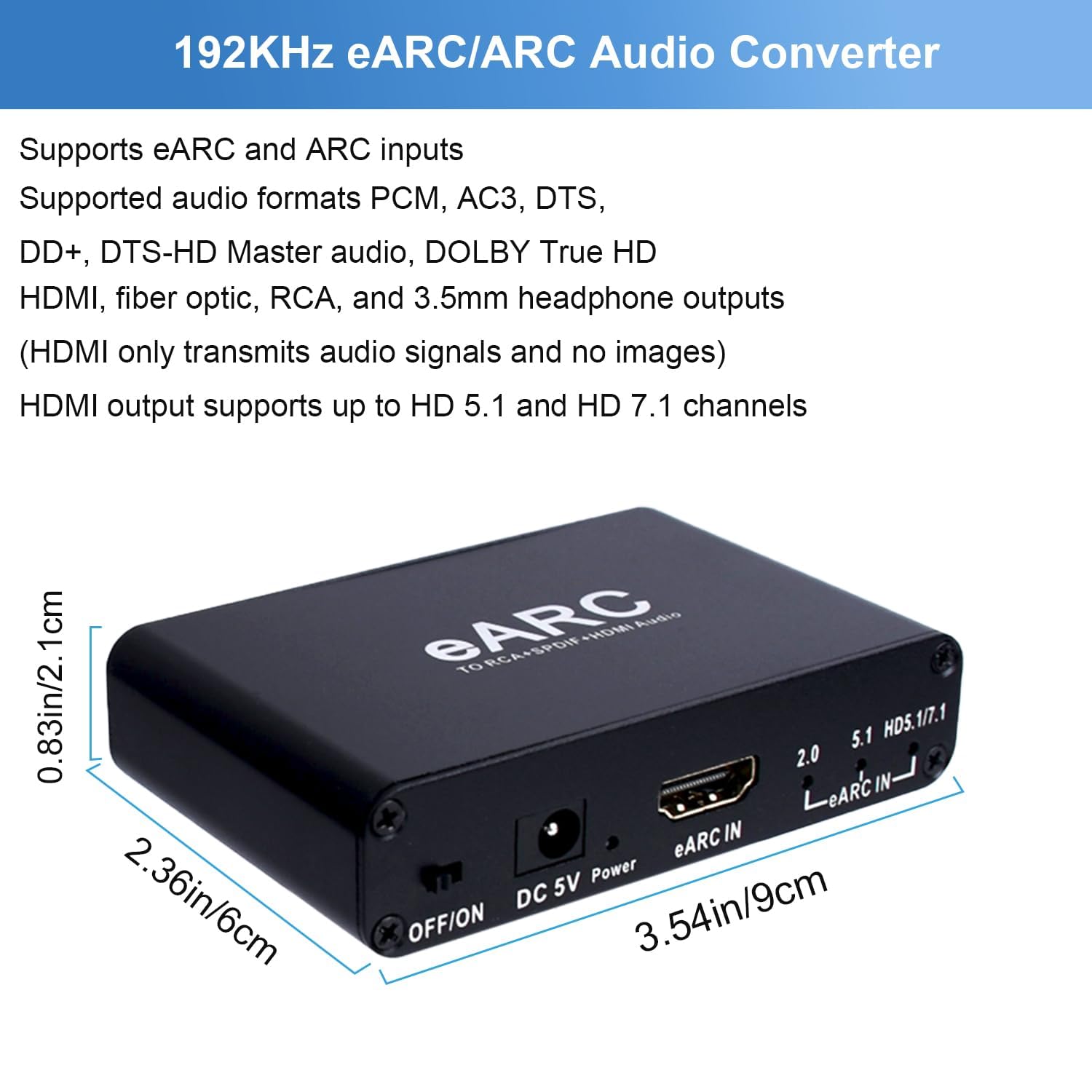

-Product size: 90*65*21 (mm)
-Weight: 90g

Package Include:


  • 1xAudio Extractor Adapter;  1xUSB Power Supply Cable;  1xUser Manual

Note:

1. When there is no sound output from the device after turning on the power, please check the following problems:

A: Does the TV support eARC/ARC function

B: Whether the adapter is turned on

C: Whether the HDMI cable is connected to the TV support HDMI eARC/ARC interface

D: Whether the TV is in HDMI eARC/ARC audio output (use the TV's remote control to turn it on).

2. When the RCA connector, headphone jack, is noisy or abnormal, set the TV to stereo output (PCM/LPCM 2-channel output).

3.:Please  connect the HDMI port with the eARC/ARC mark and make sure the eARC/ARC  function is enabled on your TV, otherwise it cannot be used.
